Description
Dual 4K video system dual-channel optical system Panoramic Microscope, allowing to present local magnification images and panoramic images simultaneously or separately. Including powerful image acquisition and processing functions such as photo taking, video recording, measurement, USB storage, USB computer storage, etc. Used with 3D observation lens and various objective lenses for mobile phone motherboard BGA IC soldering repair, electronic equipment repair, scientific research, educational laboratory, medical research, precision product assembly and testing, handicraft carving, etc.
Features:

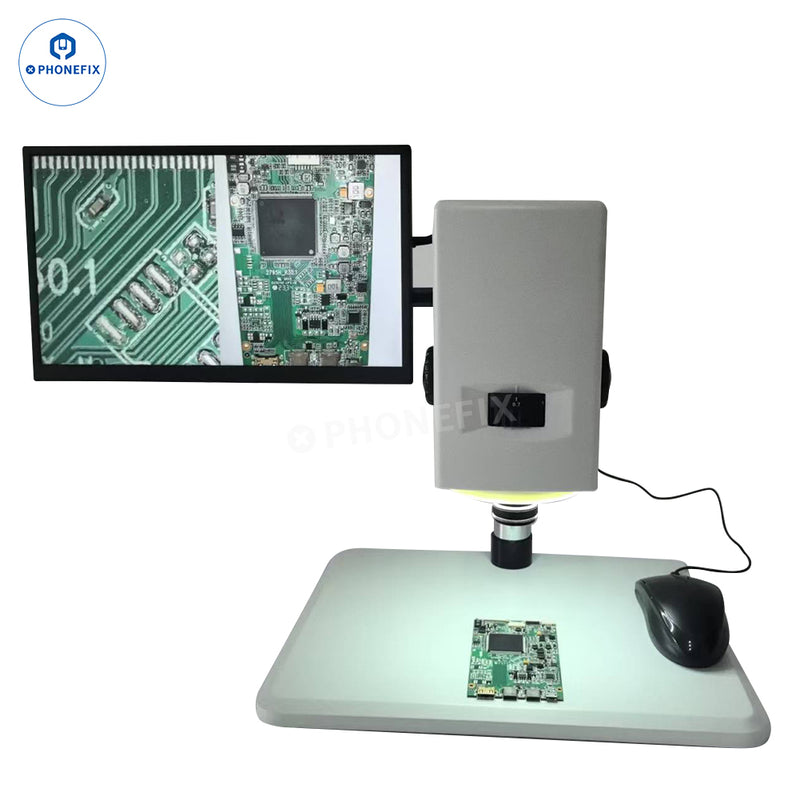

1. Panoramic Microscope equipped with dual 4K video system (3840*2160@60 frames x2), dual optical system (i.e. microscope and panoramic lens). The microscope local magnified image and the panoramic image can be displayed simultaneously or separately; it can achieve a large field of view, a large depth of field, and a high magnification.
2. A multifunctional professional microscope inspection equipment with powerful image acquisition and processing functions such as photo taking, video recording, measurement, USB disk storage, USB computer storage, etc.
3. The main unit of the monocular microscope with a parallel optical path can be equipped with a 3D observation lens, coaxial optical device, metallographic, biological and other objective lenses.
4. It is mainly used in scientific research institutions, educational laboratories, medical research, police criminal investigation, precision product assembly and inspection, electronic equipment maintenance, craft engraving and other places and fields of microscope application.
5. Double-click on either side of the screen with the left mouse button to display it in full screen. Double-click again to restore the dual screen display.
6. The rectangular wireframe of the panoramic image is the field of view of the microscope, which makes it easy for users to find the observation point of the microscope in the panoramic field of view.
Option:
1. EVPM-Se standard edition: dual 2K 1080P.
2. EVPM-Pro professional edition: dual 4K.

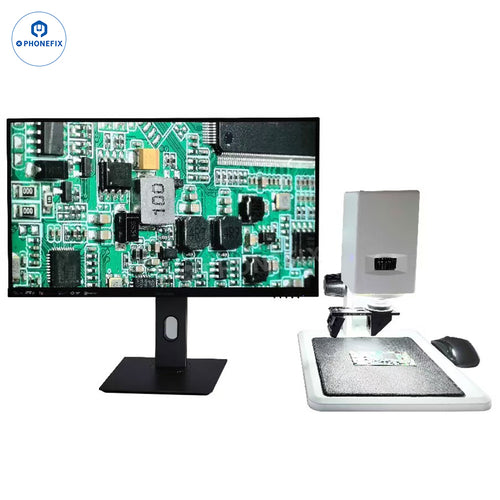

Please note: this microscope does not include a display screen, please use an external monitor.
Product Parameters:

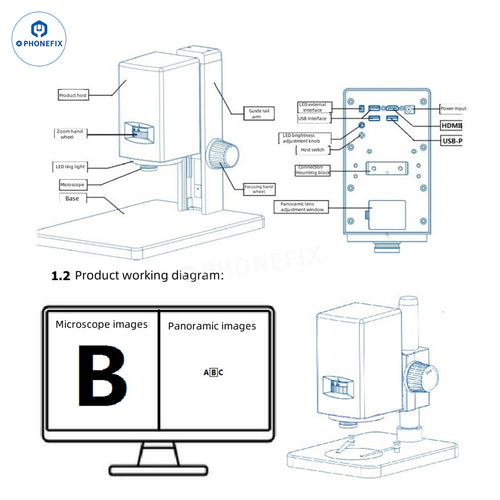

Product Installation Method:
1. Plug the mouse into the USB Device interface, which has 2 ports and can also be connected to a USB storage device.
2. Use an HDMI cable to plug the HDMI Out interface on the back of the host and connect it to a 4K monitor.
3. Plug the 12V DC power supply into the DC 12V in DC power supply interface on the back of the host and turn on the power supply. At this time, the host enters the device self-test state. After the LED light goes out, turn on the On/Off power switch and the host officially starts working.
4. The brightness of the host LED light source can be adjusted using the LED Control knob handle.
5. If you need a computer to capture pictures or videos, you can connect the USB-PC interface and install the software to process and capture images.
