38MP HDMI USB digital Industry Video Inspection Microscope Camera with TF Card Video Recorder, 14MP 16MP 38MP HDMI Digital Electronic Video Microscope Camera + 180X C mount lens + 56 LED Ring Light + Stand Holder.

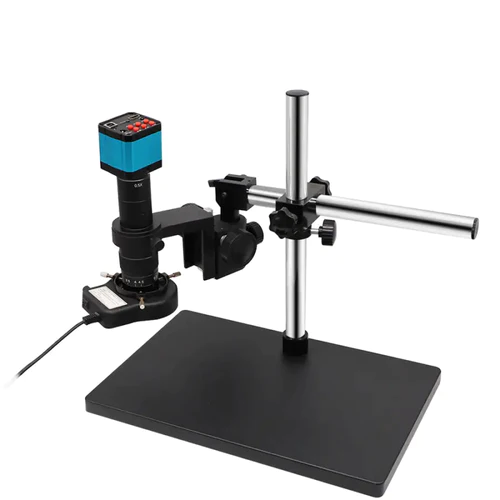

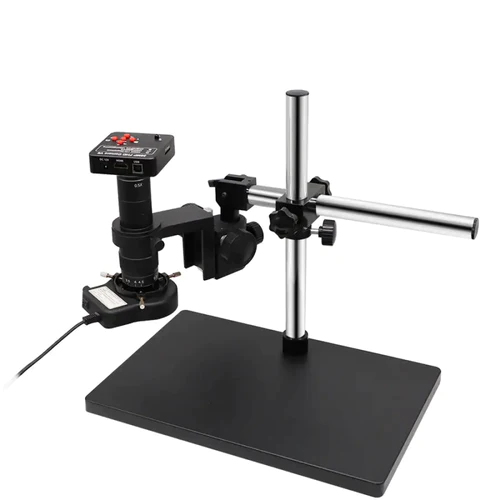

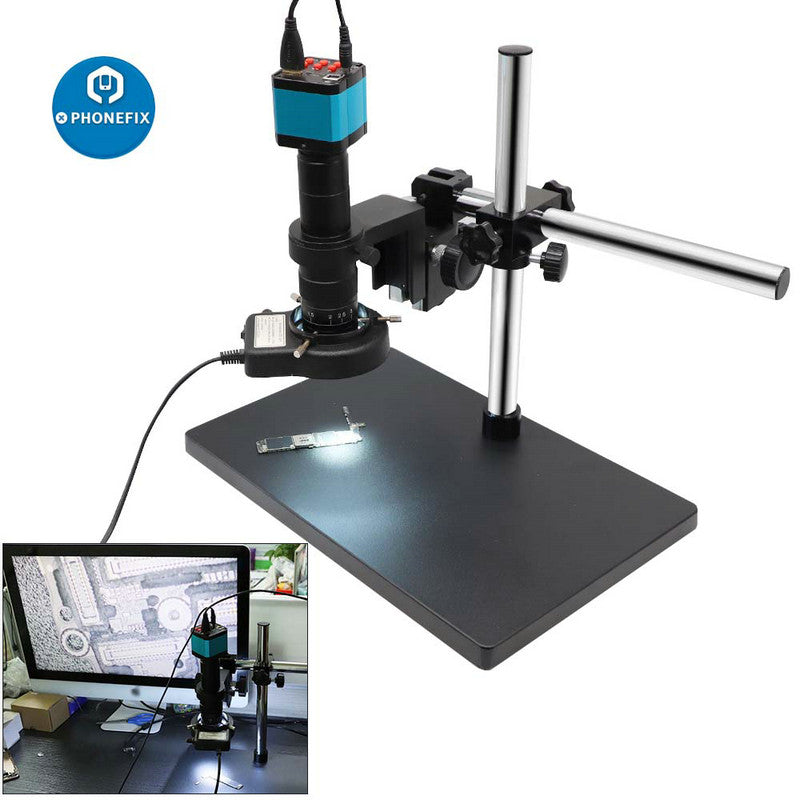

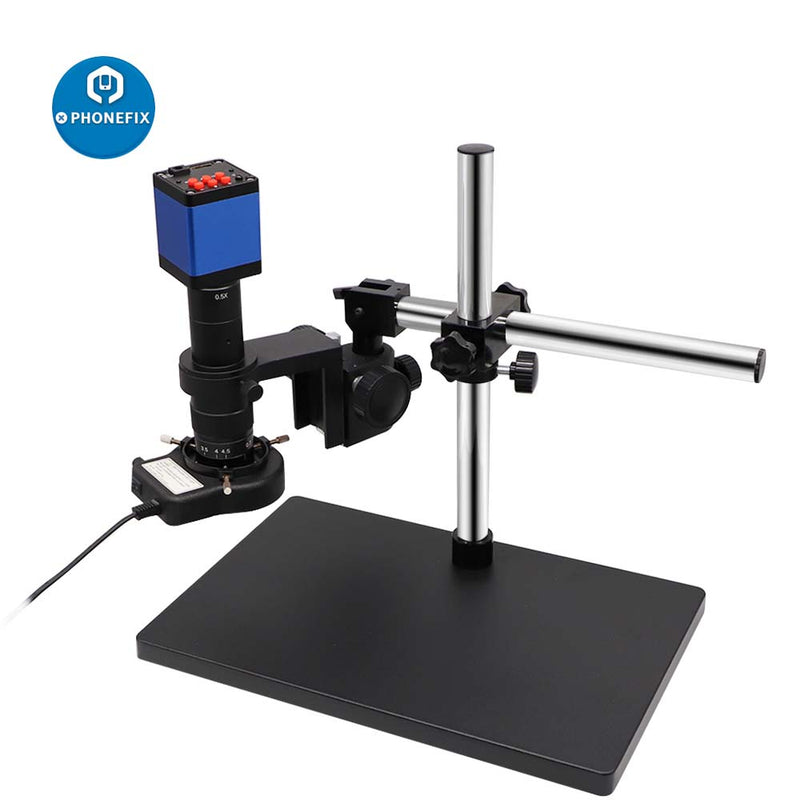

Digital Industrial Microscope Camera + 180X C mount lens (0.5X) + 56 LED ring Light + Stand holder (360 degrees of free adjustment and rotation)
Base holder: Upper and lower, left and right side can be adjusted and moved, 360 degrees of free adjustment and rotation. Universal direction - any direction can be adjusted
it is used extensively world medical research and health care, biology and botany research, and agriculture, as well as in electronic component manufacturing. Specially suited for LED, electronic PCB / Phone Logic Board inspection, pressing plating and electronic component inspection.
HDMI Camera adapter:
- Option 1: 38MP 3800W 60FPS, Panasonic sensor 1/2.3 inch
- Option 2: 16MP 1400W 60FPS, 1/2.3 inch
- Option 3: 14MP 1400W 60FPS, 1/2.3 inch
- Option 4: HDMI + VGA Input, 2MP 200W 1080P, 30FPS, 1/3 inch
- Option 5: HDMI 2MP 200W 1080P, 30FPS, 1/3 inch
- Option 6: VGA Input 2.0MP 200W 1080P, 30FPS, 1/3 inch
High Quality, High Resolution, Clear Images
38.0MP/16MP/14MP/2MP 1/2.3 / 1/3 Inch big size Panasonic CMOS Image Sensor
TF Card Video Recorder
Photo Model / Video Model
Industry CMOS Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
It builds in digital crosshairs and color control, add line in the pictures, freeze ,Mirror, Rotate, Negative
Supply USB2.0, HDMI HD video,Two output.
Specification:
Basic function:Brightness, contrast, saturation, white balance,
black and white switching, date adjustment.
Image adjustment:Exposure, Flicker restrain, Acutance,
Gamma, Cb/ Crgain adjustment.
Camera function:Digital zoom, Horizontal,vertical mirror, image freeze.
Storage:Image capture,video, image preview, TF card formatting
color, line, displacement, and hidden.
Crosshair:Can adjust color, line size, hide or display.
White balance: Auto/manual.
TF card interface: Max 64G-128G.
HDMI interface: Standard HDMI output / VGA Output.
HDMI Image resolution: 8168*6128 4:3(50MP) 8168*4592 16:9(37MP) (for TF Card),
USB Image resolution: 1920 *1080 (for PC USB) .
Video resolution: 1920 *1080 @ 60FPS for HDMI, 1920 *1080 @ 30FPS 1280*720@ 30FPS 640*480 @ 30FPS
320*240 @ 30FPS for USB / VGA
Video format: MP4
Image format:JPG
Color: Color/black and white
Freeze: Support/NO
Exposure:Auto/manual
Camera Interface:C-MOUNT
Remote operation:Yes/NO
Language Support :Chinese English French Spanish Portuguese German Italian Simplified Chinese Traditional Chinese Russian Japanese
C-MOUNT Lens (0.5X Module):
Working distance: 50~155mm
zoom c-mount Lens
Magnification Power by 8X~180X
Size: 115mm(L) * 40mm(DIA)
56 LED Adjustable Compact Microscope Ring Light:
Provides intense and focused shadow-free illumination
56Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination
100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
Inside diameter of the ring light: 1.0" (27mm)
Overall outside diameter: 1.77" (45mm)
