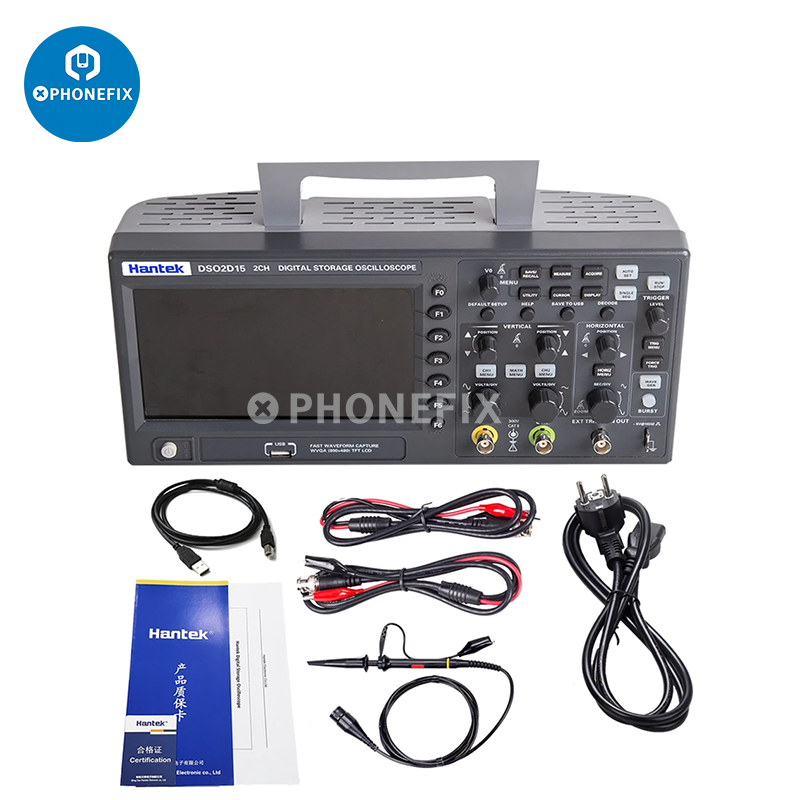

Hantek DSO2D15 DSO2D10 DSO2C10 DSO2C15 economical oscilloscope. Hantek DSO2C15 DSO2D15 150MHZ dual-channel digital oscilloscope. Hantek DSO2C10 DSO2D10 100MHZ dual-channel digital oscilloscope. Features:1. 2 channels, each channel has independent knob control.
2. Analog bandwidth 100MHZ, 150MHz.
3. The highest sampling rate is 1 GSa/s.
4. Storage depth 8Mpts.
5. Vertical range 2mV/div ~ 10V/div.
6. Built-in one 25MHz signal generator.
7. Vertical resolution: 8bit.
8. Trigger: edge, pulse, video, slope, timeout, window, pattern, interval, runt, UART, LIN, CAN, SPI, IIC.
9. Bus decoding and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN.
10. It can save settings, waveforms, reference waveforms, CSV, pictures and other data formats.
11. 5-digit digital voltmeter and 6-digit hardware frequency meter function.
12. Support 32 kinds of automatic measurement and statistical functions, real-time statistics of minimum, maximum, standard deviation and other statistical information.
13. Two sets of digital voltmeter functions.
14. Support threshold test to realize free measurement in the screen.
15. Abundant SCPI remote control commands.
16. Multiple types of peripheral interfaces are provided: USB Host/Device.
Product Highlights:Single-channel 25MHz signal generator, supports arbitrary waveform burst output, and supports modulated waveform output.
32 kinds of automatic measurement, statistical analysis function.
Can save 10 groups of reference waveforms, CSV waveforms, settings and USB one-key screenshot function.
Dual-channel DVM, five-digit digital voltmeter and six-digit frequency meter function.
Serial bus triggering and decoding, providing protocol monitoring capabilities.
8M storage depth, reducing waveform distortion and restoring real waveforms.
PASS/FAIL function.
Math transport and FFT functions.
XY mode supports dual window display.
Hantek DSO2C DSO2C Series Oscilloscope Including 4 types Oscilloscope: DSO2C10 DSO2C15 DSO2D10 DSO2D15
