FT232 FTDI USB Module FT232RL USB to serial port mini USB

VIPProgrammerSKU: FT232

Price:
Login to view price

Shipping calculated at checkout

Stock:
In stock

Description

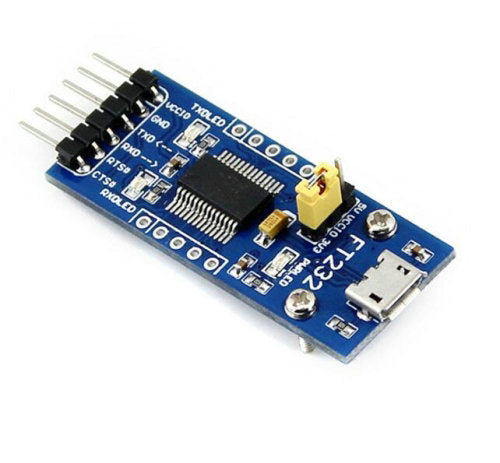

FT232 module is the FT232 USB to serial port mini USB, FT232RL USB to TTL FT232RL FT232RL Development Board, FT232RL USB to TTL Serial Adapter Module Mini Port.

FT232 FTDI USB Module FT232RL USB to serial port mini USB.

Features : USB to Serial
Maximum Features: supports three power modes : 5V external power supply ; 3.3V external power supply ; externally powered ( requires 3.3V-5V)
Comes with 3 LED: TXD LED; RXD LED; POWER LED;
Typical applications : MCU communicates with the PC (using the UART protocol software , hardware-based USB interface )
The main resources : FT232, USB mini interfaces , UART interfaces, select the interface mode power supply.

Instructions for use: ( here , to access the MCU to illustrate how to connect each PIN )
VCCIO: Input 3.3V-5V ( module from an external power supply is required jumpers jump ) or output 3.3V or 5V ( USB-powered module jump , jumper shall 3.3V or 5V)
GND: GND connection
TXD: pick MCU.RX ( signal flow : MCU.RX << FT232 << PC.TX)
RXD: pick MCU.TX ( signal flow : MCU.TX >> FT232 >> PC.RX)
RTS #: pick MCU.CTS ( signal flow : MCU.CTS << FT232 << PC.RTS)
CTS #: pick MCU.RTS ( signal flow : MCU.RTS >> FT232 >> PC.CTS)
Special Note :
Support windows8.
TXD, RXD, RTS #, CTS #: using bent pin leads.
The remaining PIN: No welding pin, row seat, but the distribution pin, row seat, can be user-defined , the plug is inserted or lower access a user's system .
