ATTEN GT-1028 1300W Digital Display Hot Air Desoldering Station

VIPProgrammerSKU: GT1028

Option: Atten GT-1028
Voltage: 110V US Plug
Price:
Login to view price

Shipping calculated at checkout

Stock:
In stock

Description

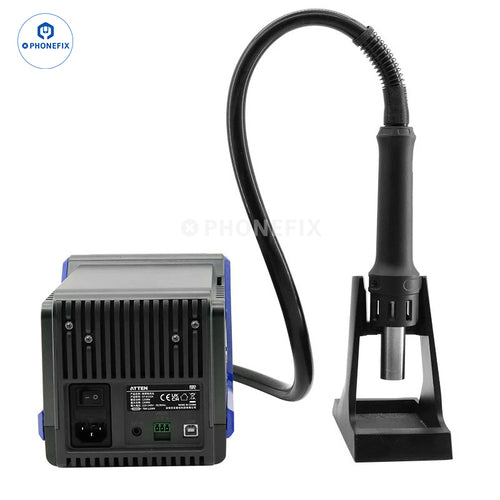

ATTEN GT-1028 Intelligent Digital Display Programmable Internet of Things Hot Air Desoldering Station BGA Rework Station. Atten GT-1028 1300W High Power Hot Air Rework Station with Vacuum Pick-Up Tool for phone PCB motherboard soldering repair.

Atten GT-1028 1300W  Hot Air Desoldering Station is a professional intelligent rework station with vacuum pick-up tool. Components can be extracted after desoldering, built-in brushless fan, long use life, and low noise. Support control the switch on and off of the smoke purifier.

Features:
1. Large TFT color screen, more convenient to set and monitor parameters.
2. 1300W pluggable ceramic heater, heating fast,  PID algorithm temperature control, accurate, and stable temperatur.
3. Infrared temperature calibration function,temperature curve setting function.
4. 3 sets of shortcut air volume/temperature to simplify operations, it can be controlled by an external pedal. Built-in RS-485 communication interface, supports Iot functions.

Specification:
Model: GT-1028.
Rated operating voltage: AC 110V/220V.
Power: 1330W(220-240V)/1000W(110-120V).
Fuse: T8A(AC 250V)/T12A (AC 125V).
Temperature Range: 100℃~500℃/212℉~932℉.
Air Volume Range: 1%~100%.
Timing Time: 10~900s (Can be turned off).
Temperature unit: ℃/℉, default ℃.
Vacuum pressure: -60Kpa.
Airflow: 120L/Min (Max).
Multiple alarm and protection functions: Heater open circuit alarm, sensor fault alarm, zero crossing signal alarm, SCR damage alarm, over-temperature protection alarm.
Password protection function: Available (Off by default).
Alarm function: Available (On by default).
User temperature compensation: ±50℃/±90℉.
Multiple languages for user interface: Chinese/English.
Heating power display: 5 dynamic power bars.
Temperature adjustment step: Long press for 10 units adjustment, short press for 1 unit adjustment.
Air volume adjustment step: Long press for 2 units adjustment, short press for 1 unit adjustment.
Rapid temperature air volume time: 3 groups of temperature/air volume/time, can be called quickly.
Working conditions: Temperature 0℃~40℃; Relative humidity<85%RH.
Dimension: 230*142*145mm.

Package includes:
1 x Atten GT-1028 Desoldering Station.
1 x Power Cord.
1 x Hot Air Gun Handle.
3 x Hot Air Gun Nozzle.
1 x Hot Air Gun Holder.
1 x USB Cable (A To B).
1 x Vacuum Pen (Included Tool Box).
2 x Bent Suction Nozzle.
2 x Straight Suction Nozzle.
12 x Suction Disc.
