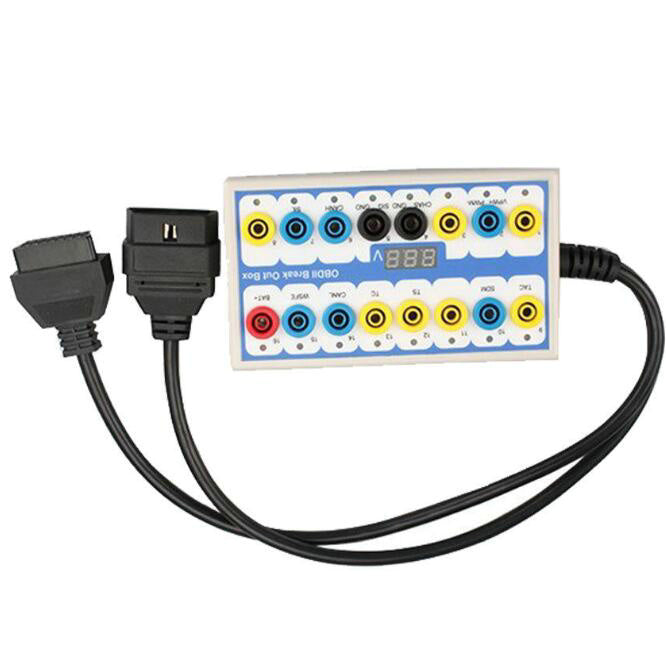

ADS9100 OBD-II Protocol Detector Break Out Box connector link Box

VIPProgrammerSKU: VIP776

Price:
Login to view price

Shipping calculated at checkout

Stock:
In stock

Description

ADS9100 OBD-II Protocol Detector is vehicle diagnostic signal Testing terminals, OBDII Protocol Detector and Break Out Box has a wide range of applications in diagnostics, car key programming and ecu chip tuning.

ADS9100 OBD-II Protocol Detector OBD-II Break Out Box

It's mainly used for changing automotive diagnostic OBD stitch to signal judgment level transfer. It can connect with any diagnostic instruments and judge whether car communication is normal. Also it can supply car power during replacing the battery , in order to prevent the body electrical equipment locked automatically.

Diagnosing vehicle communication link concerns is difficult enough without having the added difficulty of accessing the vehicle diagnostic connector. Testing terminals directly with the vehicle diagnostic connector can damage pins resulting in erroneous codes and difficult additional repairs. In addition, the vehicle diagnostic connector is difficult to access and determine which terminal is actually being probed. The J1962 Diagnostic BOB has a 36” extension from the vehicles 16 pin connector which can be difficult to access.

This allows an easy and secure connection between the vehicle terminal test point and the measurement device. The BOB also has a vehicle side diagnostic connector which accepts any scan tool used for additional diagnostic measurements. The J1962 Diagnostic BOB can be used on all 1996 and greater model year vehicles. This tool can be used in conjunction with any existing OEM Diagnostic Manual procedures.

Applicable to all 1996 and above makes and models - aids in the diagnosing of link concerns.
OEM approved - eliminates damage to vehicle terminals.
Easy to install - provides easy access and identification to all 16 OBD-II test points.

Features:
1. An extension of OBD Diagnostic Link Connector (DLC).
2. For short circuiting of pins, to detect isolated circuits problems.
3. Is a power extension cord for small DC testers that need an external power source. (maximum 1.2 amps)
4. To monitor data stream while performing test on vehicle using a Scantool.
5. To test circuits with a meter or scope
6. To perform special functions and tests as Ohm-out, Bench programming.

Specifications:
1. Certification: CE
2. Language: English
3. Material: Plastic
4. Color: Black+Yellow
5. Display Screen: Without
6. Power: 1.8W/3.6W
7. Work voltage: 12V/24V
8. Work current: 0.15A
9. Work temperature: -10 C~40 C
10. Ambient temperature: -20 C~40 C
11. Relative humidity: < 90%
12. Applicable signal: Car signal, LED
13. Package: 25*13*90mm/9.45*5.12*3.54 (L*W*H)

Package:
1pc * OBD-II Break Out Box
1pc * OBD pin Cable
1pc * User Manual
1pc * Box
