Description

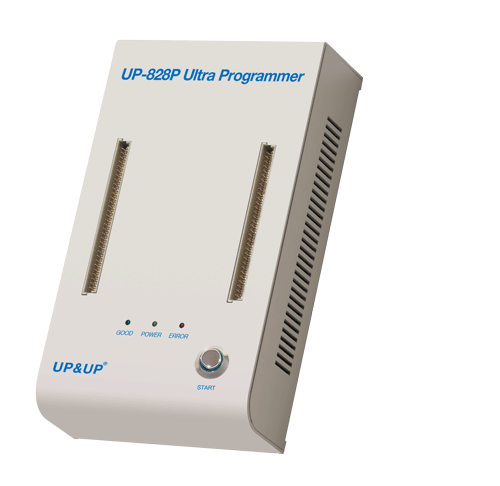

The UP-828P Series programmer is High Speed Universal Programmer for flash memory developer, UP-828P Ultra fast universal programmer will enables examiners the ability to acquire the data from a variety of flash memory, including: NOR FLASH / NAND FLASH / SERIAL FLASH / GB-NAND / OneNAND / MoviNAND / iNAND / eMMC / eMCP / SD memory card.
Sedum UP-828 Ultra programmer have be updated to UP-828P, Pls note it, new UP-828P need new programmer adapter, old UP-828 series programmer adapter can't be used on new UP-828P programmer, When you place the order, pls leave the message to us, we sell 2 kinds UP series programmer adapter: UP-828 series and new UP-828P series,
New UP-828P / UP-818P adapters is the same price with Old UP-828 / UP-818 adapters, If you need the Adapters for UP-828P / UP-818P programmer, just leave the message to us when place the order.
The UP-828P Programmer offers a growing number of IC sockets and chip adapters, it supporting a growing number mobile device memory chips.
UP828P Ultra Programmer features:
1. UP-828 UP-828P Ultra Programmer supports the newest types of FLASH, NAND FLASH, SERIAL FLASH, MoviNAND, iNAND, eMMC etc, in addition, the BOOT area of iNAND, eMMC and MoviNAND can be read and written.
2. The EMMC s read/write speeds can reach to 20MByte/sec.
3. UP-828P Universal Programmer Support 48MHz read and write pulse, the highest support speed of read and write close to the limits of devices.Program + Verify one 1Gb NAND FLASH only in 34 seconds, program + Verify one 8Mb FLASH only in 4 seconds Chip Model N25S80, S71PL064JB0 K9F1G08U0A KLM8G2FEJA
Programmer UP828 UP128 UP828 UP128 UP828 UP128 UP828
Program + Verify (S) 3.4+0.6 null 30.3+1.2 43.4+4.1 22.2+11.4 78.4+167 468.42+458.24
Type 8Mb SERIALFLASH 64Mb NOR FLASH 1Gb NAND FLASH 8GBytes moviNAND.
4. 110 pins universal driving, Support VCC of devices from 1.2V to 5V.
5. Auto-test short circuit or bad contact of devices, with intuitionist graphics Real-time detection ofshort circuit or bad contacting of devices, Guarantee the safety and quality of programming device.
6. Program interface is simple, the device operation unified, different devices configuration and set option use uniform window entrance especially designed for mass production compact interface, even front-line workers can easily using it freely.
7. Simple operation, accessible, general deviceprogramed only need to set program options and device configuration, operation can be carried out simply, and flow is clear, dont need a lot of training can be easy to get started.
8. Adopt reliable engineering encryption technology and innovatively using disposable engineering password mechanism to ensure the project files in transmission and in the process of using security, and control production, powerful safeguard engineering data securit.
9. High effective batch production mode: with one computer, you can run at most 8 UP-828P programmer, occupy less resource And SERIAL FLASH support the four modules, that is one host write four devices at the same time.
10. Cluster quantity production support each host asynchronous, speaking, reading and writing, need not synchronous wait: Putting IC into each host programmer can be burned, or other operation without waiting, save the waiting time Using one interface, but clearly operat each host, without switching back and forth, to further improve the overall efficiency of the mass production.
11. Have the standard programming interface, devices can be customized for a variety of special programming algorithms, such as a variety of NAND bad block processing algorithms,Special serial number generated algorithm, devices under different conditions, programming, testing algorithms, etc., to meet a variety of special needs.
12. High compatibility, durable BGA adapter, supporting the patented product BGA adapter average life-span more than 20 thousand times,usability and lifetime far beyond the import adapter.
13. Perfect detailed log files and production programming statistical report,convenient programming quality tracking.
14. Supports WINDOWS XP/VISTA/WIN7/WIN8/WIN10 operating system.
UP-828P Ultra programmer Hardware specifications:
1. communication interface: USB2.0 (compat USB1.0/1.1);
2. System requirements: WINDOWS XP / 2003 / NT/WIN7 operating systems, 256MB or above RAM, 1GB or above hard disk space;
3. Power Specifications: Input AC 100-240V, 50/60HZ; output DC 5V/1A;
4. Host size: 208*128*45mm, 0.8kg
UP-828P programmer package list:
1pcs: UP-828P Programmer Host
External power
USB 2.0 cable
User manual
Installation software CD
Warranty card
Optional: IC socket and IC adapter(suit for pin pitch 0.65mm, 0.75mm, 0.8mm, 1.0mm, 0.5mm etc devices; Support Package: FBGA, LGA, BGA, EBGA, SOP, TSOP, PSOP, TSSOP, SDIP etc..)
UP-828P flash memory programmer update:
1. Aperiodically update the adding new devices, and update it on our website
2. Users can download the latest software freely on our website, also can get free software CD
3. Users can apply for special device support
Software for UP-828P Series High speed universal programmer: http://www.up48.com/download/UP828Setup.exe, install the software, and check the supported IC list and adapter models
http://www.up48.com/english/download.htm
Quality Assurance:
In the warranty period, and match the warranty coverage, the Programmer can be free repair in one years.
Adapter and socket are belong to damage easily things, not warranty.
UP-828P series Programmer Adapters:
Suit for pin pitch 0.65mm,0.75mm,0.8mm, 1.0mm,0.5mm etc devices; Support Package: BGA, EBGA, SOP, TSOP, PSOP, TSSOP, SDIP etc..
High quality and lower price, can used more than 20,000 times.
Adapter models application:
EBGA64P Suit for 1.0mm pin pitch BGA package chips, 8X8 arrays
FBGA137P Suit for 0.8mm pin pitch BGA package chips, Supports chips found in many feature and burner phones
FBGA167P Supports some of the NAND memory chips found in feature and older smartphones
VBGA56P Suit for 0.5mm pitch BGA56 package chips
VBGA162P Suit for 0.5mm pitch BGA package chips, MOVINAND/iNAND/eMMC
VBGA186P Supports EMMC memory found on newer smartphones and tablets
VBGA169P Suit for 0.5mm pitch BGA package chips, Supports some MOVINAND/iNAND/EMMC memory found on the newer BlackBerry 9000 series devices and many Android phones
VBGA169EX4 Suit for 0.5mm pitch BGA package chips, MOVINAND/iNAND/eMMC
VBGA11P5 For iphone IC
VBGA153P 162P Suit for all kind of eMMC type chips.
VBGA134P For iphone IC
LGA52P For iphone IC
SOIC8SX4 SOP package
SOIC16WX4 SOP package
SBGA199P Supports some of the NAND memory chips found on the early 9000 BlackBerrys and other phones (0.65mm)
SBGA152P For BlackBerry Devices
BGA169P Supports some MOVINAND/iNAND/EMMC memory found on the newer BlackBerry 9000 series devices and Android phones
UP-828 Adapter SBGA188P
UP-828 Adapter VBGA162
UP-828 Adapter BGA107n
UP-828 Adapter VBGA169PX4
UP-828 Adapter VBGA529
UP-828 Adapter BGA110
UP-828 Adapter FBGA63 U08631
UP-828 Adapter VBGA40
UP-828 Adapter SBGA152
UP-828 Adapter FBGA167
UP-828 Adapter VBGA169E
UP-828 Adapter SBGA199
UP-828 Adapter U11371 FBGA137
UP-828 Adapter VBGA221
UP-828 Adapter BGA88
Additional UP-828P programmer Adapters is Available in: http://www.vipprogrammer.com/ic-socket-for-up828-manufacturers-42_45
