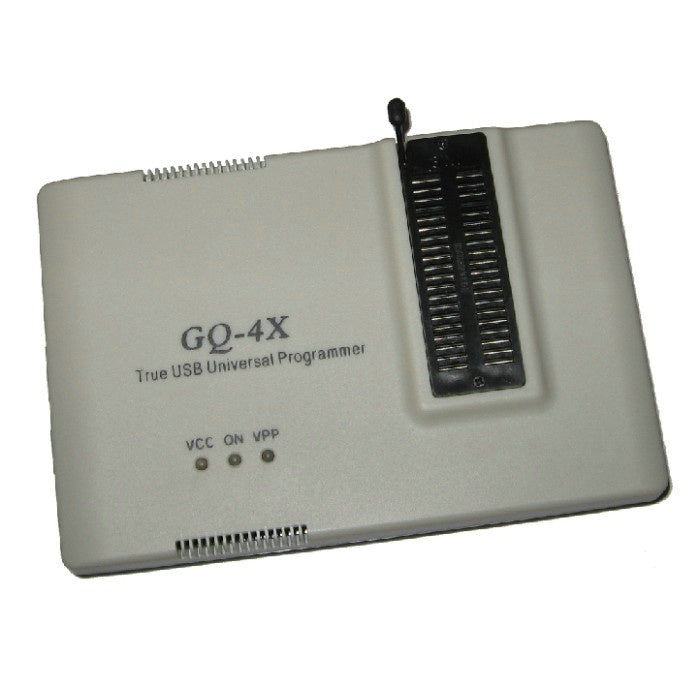

GQ-4X universal programmer is the True USB GQ series Universal Programmer series from MCUmall Electronics Inc Canada, GQ-4X usb programmer is universal 40pin Willem programmer, it support all willem zip programmer adapters, and work with almost EEPROM FLASH CHIP.
GQ-4X True usb universal programmer EPROM BIOS chip Burner.
With its complete new professional design, True USB PRO 40pin Willem programmer GQ-4X is the first & exclusive Willem universal programmer in the market that owns the key/unique features.
Neat robust enclosure; 40pin ZIF socket, fully automatic; JTAG support; Fast mode SPI support;
Real True USB interface for both data transfer and power supply;
High speed/fastest; most-user-friendly; simplest-to-use;
Support O/S XP32bit 64bit, Vista 32bit,Vista 64bit; Window7 32bit 64bit;
Software update/upgrade regularly by MCUmall Canada; free life-time software upgrade/download from MCUmall website;
Allows end users add in their own chips/devices easily to the software (editing .txt file)
MCUmall GQ USB Software update history: please refer to our website MCUmall com on "Download"
Over 10,000 users worldwide, include
Multi-languages support capability (14 languages): Arabic,Czech,Dutch,English,Estonian,French,German,Greek,Hungarian,Italian,Spanish, Portuguese,Russian,Turkish
Support chip package: POSOP44, PSOP56, TSOP48,TSOP40,TSOP40,TSOP32,SOIC,PLCC84,PLCC44,PLCC32,FWH+16bit EPROM, AVR.
Wide range of available adapters: please refer to our website MCUmall com ADAPTER.
MCUmall Post-sales/Pre-sales technical support forum: please refer to our website MCUmall com on "Forum".
Features of ADP-054 16 Bit EPROM 40/42 pin ZIF adapter V3 for Willem.
For Standard/Enhanced Willem and GQ-2X,GQ-3X,GQ-4X True-USB EPROM programmer.
It has on board both DIP40 and DIP42 ZIF sockets and 2 PLCC44 sockets on board. So that be able to support both DIP and PLCC package 16 bit EPROMs easily.
Devices supported on ZIF socket: 27C1024,27C2048, 27C4096,27C210,27C2002,27C4002,27C400, 27C800, 27C160, 27C322.
The adapter set also includes 42 pin EPROM address wires for all 32 pin ZIF Willem programmer. For GQ-4X does not need address wires.
Jumper setting on board:
J1 2-3 short 27c322, 1-2 short for all others.
J2 is extended address pin header, it is only for 42 pin EPROMs. Connect those pins to programmer address pin header, not the ZIF socket.
J5, chip compatibility jumper. Only change it if the chip has inconsistent reading, writing.
Package List:
- 1x True-USB GQ-4X Programmer
- 1x USB Cable (for both power & data communication)
-
Software & Manual (CD)
