QIANLI ToolPlus SuperCam X 3D Thermal Imager Camera PCB Fault Diagnosis

Save $109.44
VIPProgrammerSKU: QIANLIX3D

Option: Super Cam X
Price:
Login to view price

Shipping calculated at checkout

Stock:
In stock

Description

QIANLI Toolplus SuperCam X 3D Thermal Imager Camera Mobile Phone PCB Troubleshooting Motherboard Repair Fault Diagnosis Instrument. QIANLI SuperCam X 3D Infrared Thermal Image Analyzer Desktop Thermal Imager for Mobile Phone Tablet Motherboard Troubleshooting.

Mechanic iScout infrared thermal imaging camera electronic circuit board fault analyzer for mobile phone/iPhone/iPad/tablets PCB analysis, diagnosis and troubleshooting. Mechanic iScout thermal camera with 256x192 resolution, 3D thermal field distribution, one-key leakage detection, quickly locate the fault point, supports connecting to mobile phone/PC/tablet via Type-C cable.

ShortCam Mini Thermal Imager Specification:
Model: AS21 Mini.
Resolution: 256*192.
Wavelength range: 7.5um-13.5um.
Camera angle: 25°-18°.
Display mode: Thermal imaging.
Connector type: Type-C, USB2.0.
Weight: lens-36g, body-200g.
Length: flexible gooseneck-30cm.
Lens specifications: diameter-34mm, hight-47.5mm, lantern-shaped.
Temperature measurement range: -20℃-550℃.
Temperature measurement distance: 5cm-25cm.
Supported platforms: desktop/laptop windows 7/10/11.

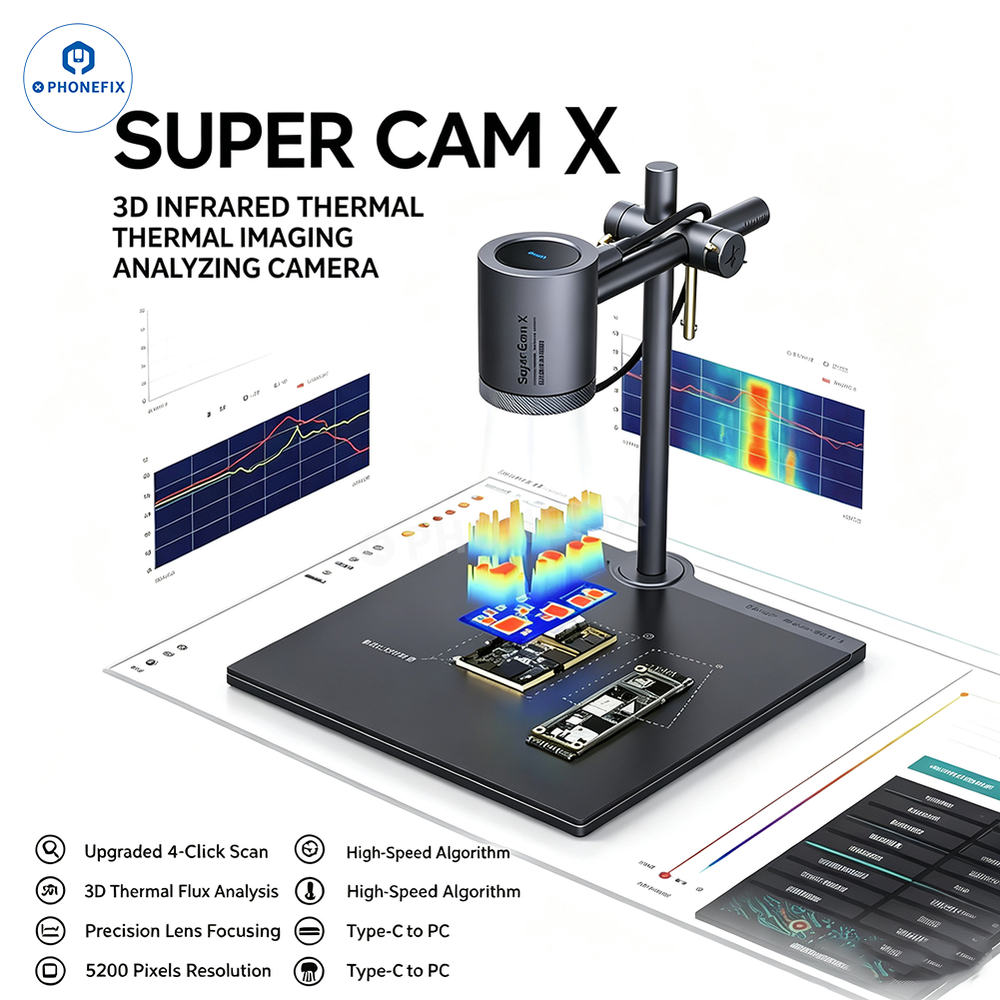

Qianli Super Cam X 3D Thermal Camera Specification:
Resolution: 52000 (260x200).
Wavelength range: 7-14um.
Camera angle: 42°x 32°.
Frame frequency: 25hz.
Bracket size: 150x160x161.5mm.
Input voltage: 5V DC.
Power consumption: <250mw.
Display mode: infrared thermal imaging.
Port type: Type-C to USB.
Image storage format: JPG(640X480).
Video storage format: MP4.
Temperature measurement function: full frame temperature measurement.
Temperature measurement distance: 2MM-∞.
Temperature measurement accuracy: ±5℃ or ±5%.
Temperature range: -20℃-120℃.
Storage temperature range: -15℃ - +60℃.
Humidity: 95% Relative temperature.

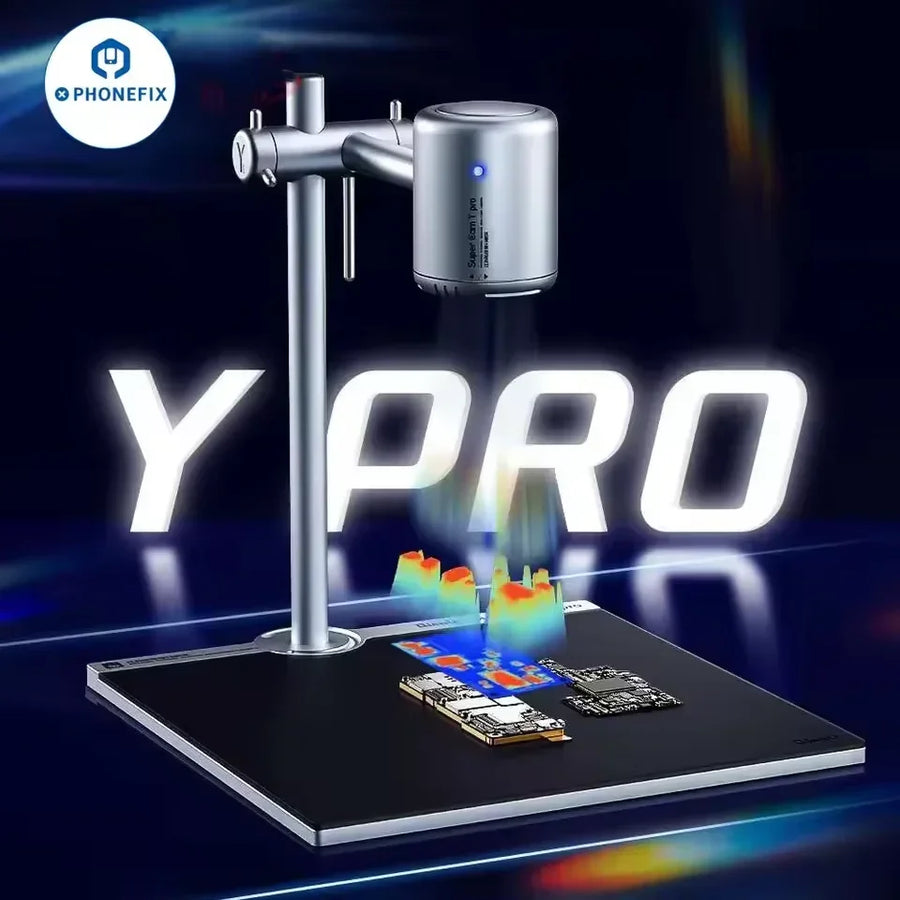

Qianli Super Cam Y 3D thermal camera specification:
Resolution: 256x192.
Wavelength range: 8-14um.
Camera angle: 56-42 degree.
Frame frequency: 25hz.
Bracket size: 150x160x161.5mm.
Input voltage: 5V DC.
Power consumption: <250mw.
Display mode: infrared thermal imaging.
Port type: Type-C.
Image storage format: JPG(640X480).
Video storage format: MP4.
Temperature measurement function: full frame temperature measurement.
Temperature measurement distance: 80-180mm.
Temperature measurement accuracy: ±5℃ or ±5%.
Temperature range: 0℃-120℃.
Storage temperature range: -15℃ - +60℃.
Humidity: Relative temperature.

Mechanic 3D Infrared Thermal Imaging camera specification:
Product model: TI-08.
Resolving power: 256x192 pixels.
Temperature measurement distance: 30mm-150mm.
Device interface: USB Type-C.
Lens field of view angle: 56x42.
Image storage format: JPG.
Video storage format: MP4.
Field: 3D thermal field release analysis visual display of temperature changes.

LINCSeek SuperCam Thermal Camera Specification:
Model: IIT ShortCam.
Resolution: 160x120.
Wavelength range: 7.5-13.5um.
Camera Angle: 61.8ºx49.5º.
Visible part of the parameters: resolution 1920x1080.
Display Mode: Visible / Infrared Thermal Imaging / Dual Optical Interlace positioning.
Power: Input power voltage 5-26V DC.
Power consumption: 2.2W (maximum 3W).
Temperature function: full temperature.

Infrared Thermal Camera Features:
1. Maximum temperature range
2. Test area maximum temperature
3. Test area minimum temperature
4. Minimum temperature range
5. Can adjust the angle of the visible light camera
6. Adjustable fusion of infrared thermal imaging and visible light image is clearer image
7. Switchable display mode
8. You can capture pictures taken by PCB and save the data of infrared imaging.
9 can record images taken by PCB and save data of infrared thermography
10. Turn on quick check to quickly find the hottest place.

 Mechanic iScout  Product Parameters:
Model: Mechanic iScout Thermal Imaging Camera
Resolution: 256x192 pixels
Measurement distance:100mm-150mm
Device interface: Type C interface
Lens field of view Angle: 56°x42°
Image storage format: JPG
MP4 Video storage format: MP4
Temperature range: -15℃~+600℃
Detection: Minimum current leakage of 6mA.
Size: 147*147*217mm
Packing: 201*201*90mm
Net Weight: 433g
Gross Weight: 825g

Features:
1. Mechanic iScout, as an upgraded version of Mechanic STi-08 thermal imager, beyond imagination, fast fault location. Support one-key leakage detection, the minimum can detect 6mA current leakage.
2. Support different areas of the image color change contrast fine check.
3. 256x192 pixels ultra-high resolution, 52000 points effective temperature measurement.(192X256)Full frame infrared detection.
4. 3D thermal field distribution display of temperature changes, dedicated mode for product evaluation and heat distribution analysis. The innovative 3D thermal field mode is more intuitive and the 2D thermal field area curve is more detailed.
5. Double plate comparison zone temperature, curve contrast record for thermal distribution design optimization fault differentiation comparison verification. Regional temperature curve comparison record, superposition comparison, etc.
6. Comfortable angle up and down, more practical design, quickly adjust the direction of the lens, loosen the sliding screw of the support. It can realize up and down, go up and down and select the appropriate detection angle, The working distance is100-150mm, and the extended lens can be observed at 30mm.

Software: https://drive.google.com/file/d/1UzFBESYBgZr8d-L7jQaUBJugRHJ5E3AM/view?usp=drive_link
