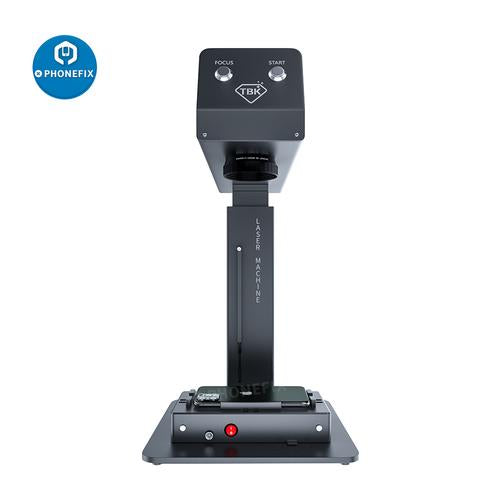

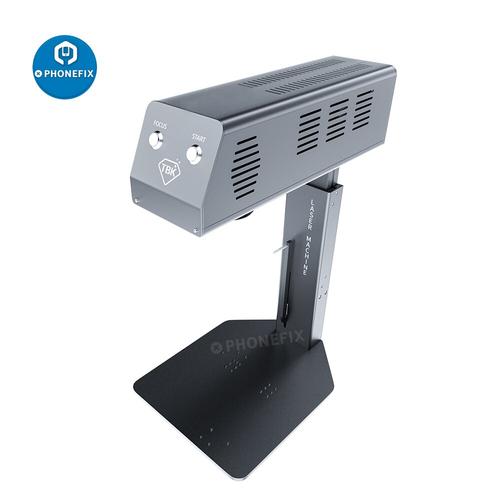

TBK 958M Mini Auto Focus Engrave Laser Machine

Save $274.44
VIPProgrammerSKU: TBK958M

Option: TBK-958M Standard -TBK01 Mold
Voltage: 110V
Price:
Login to view price

Shipping calculated at checkout

Stock:
In stock

Description

TBK-958M Auto Focus Laser Printing Engraving Marking Machine for Rear Glass Remover Separation. TBK-958M Mini size laser engraving and separating machine for smartphone screen display and rear glass replacement. TBK-958F Mini 20W Automatic Laser Machine with the Built-in Smoke Exhaust Device for Smart Phone Back Glass Removal, LCD Frame Repairing, Back Cover Separating, Engraving, LOGO Marking, etc.

TBK958M specification:
Name :Fully Auto laser LCD screen remover
ITEM NO: iLaser ultra
Working voltage: 110V/220V
Packing size: 400*200*500mm
Product power: 500W
Laser power: 6W
Laser wavelength: 1064nm
Marking accuracy: 0.001mm
Marking speed: 10000mm/s
Repeat accuracy : 0.001mm
Marking area: 175mm* 175mm
Marking depth: 0.015-0 5mm
Marking line width: 0.05-0.01mm
Applicaiton: Suitable for mobile phones, jewelry,handicrafts and other industries.

Description:

  1. TBK-958M Mini Laser Engraving Separation Machine for Smartphone Screen Dispaly and Rear Glass Replacement.
  2. TBK-958M (mini) laser Engraving and Separating Machine.
  3. 2021 Newest Designed Mini Sized Laser Engraving and Separation Machine for Smartphone Screen Dispaly and Rear Glass Replacement.
  4. Small size 36.5*23*42cm, Light Net-weight 6.0 kgs;
  5. The max height of the engraved object is 55mm, and marking range 175×175mm.
  6. Independently researching and developing the Optical path;
  7. Integrated-power mini laser, equipped with upgrading data in cloud;
  8. Imported sensor auto focus and imported high precision calibrator;
  9. External computer; one-button focus, one-button starts, simple operation.


TBK-958F Features:

  1. Built-in fume extractor and smoke exhaust device.
  2. 20W laser power, faster back glass removal compared to other machines.
  3. Supports hundreds of mobile back cases and frame data, and keeps updating!
  4. Printing logo on goods, and it can fiber laser mark pictures on metal or mobile back case.
  5. One-button start-up and operation simple: Small and compact size, occupies less working space.
  6. Built-in computer and Precise drawing: Built-in computer, software, and files included, automatic focus length, no need for measurement
  7. Laser on the phone directly, no damage to motherboard or battery, no need to open the whole phone
  8. Automatic alignment fixture mode included, 100% accurate, no need to adjust the location each time
  9. Separate back cover and bracket frames for all models, including 8-14 Pro Max and other brands like Samsung, Huawei, Oppo, Vivo, Xiaomi, LG, etc.


Note:
1. It provides big hole back glass for iPhone models, no need to remove the camera frame.
2. There is no matching mold set for this product. If you need a mold set, please contact the shop customer service and purchase it separately.

TBK-958F How to use it:
Plug in the power cord and turn on the power switch;
Remove the lens cap of the high-speed galvo mirror;
Turn on the computer switch (Computer key);
Call up the corresponding drawings;
Place the mobile phone along the fixed fixture;
Press the Focus button to automatically adjust the focal length;
Turn on the red-light indicator, aim at the red light, and adjust the parameters;
Start marking button to start marking;
Remove the mobile phone after the marking is finished, and you can disassemble the machine.

TBK-958F Package Includes:
1* 958F Machine + Smoking hood
1* Metal Card
1* One Set of Allen wrench
1* Power Cord
1* Wireless Mouse and Keyboa
