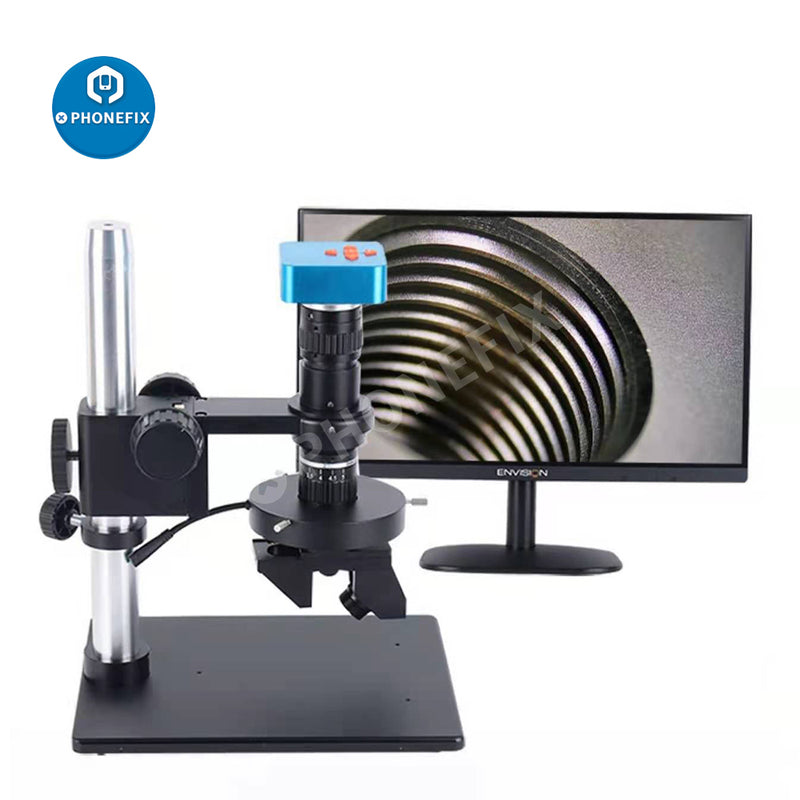

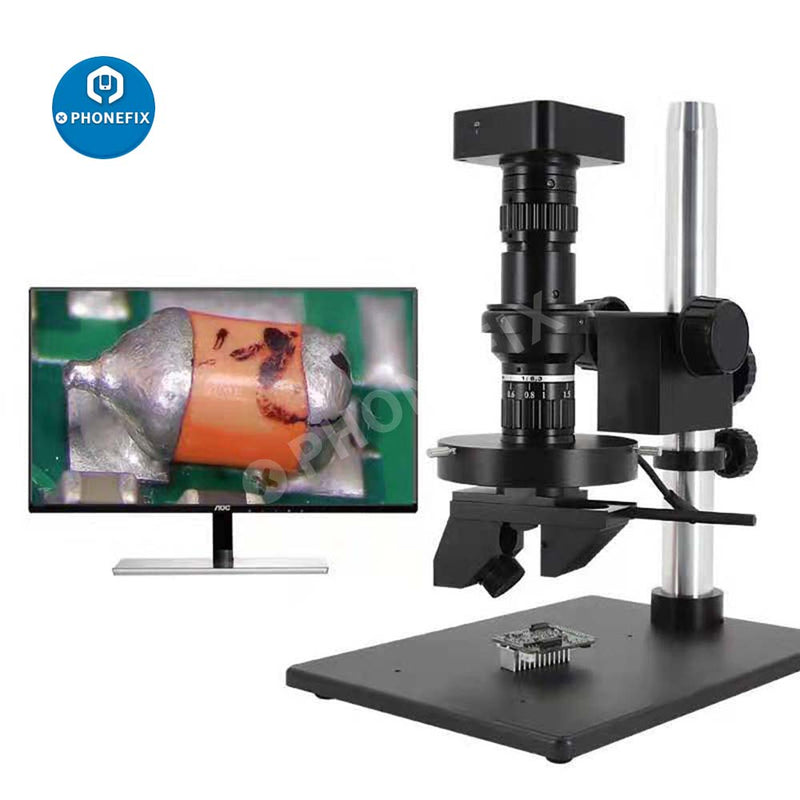

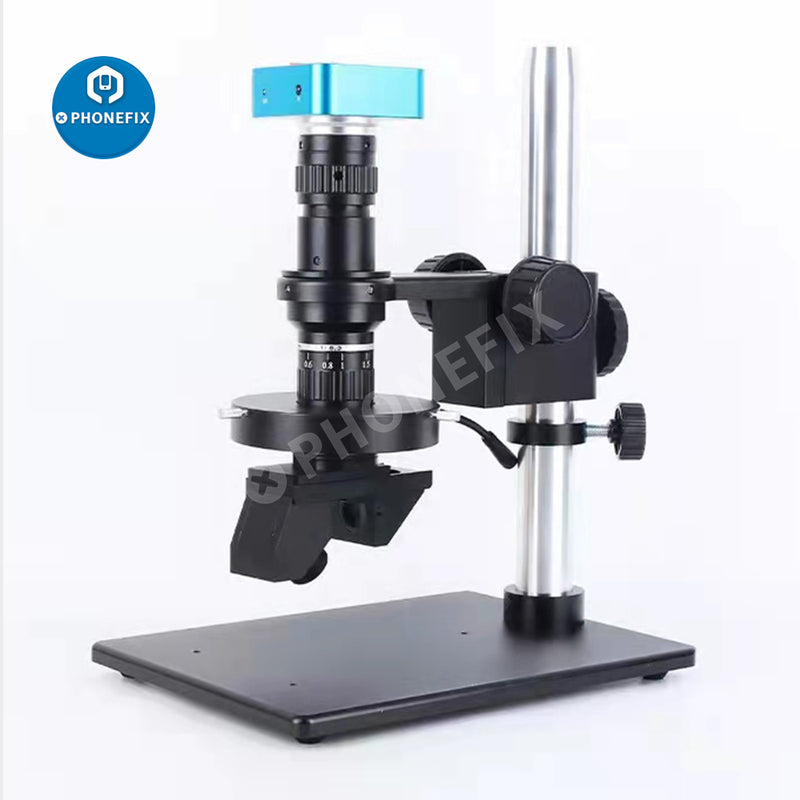

High Definition 3D Digital microscope with HDMI Video Camera

Save $40.46
VIPProgrammerSKU: H2601U-3D

Price:
Login to view price

Shipping calculated at checkout

Stock:
In stock

Description

3D Smart Digital Microscope with Full HDMI UBS Video Camera for Mobile Phone PCB Soldering Repair 3D Vision Camera. 3D Digital video Microscope Based on 2D observation, 3D angle attachment is added to obtain 3D multi-angle observation,45° (degree) 3D View angle attachment integrates magnification, imaging, display and LED illumination functions.

Advanced Optical System, Low Distoration, High Definition, Large Field of View, Super Depth of Field(≥6mm) and Good Parfocality. New Design, Easy Operation.

Specifications:
Model: 3D microscope
Optical magnification: 0.6X-5.0X
Definition: 2K HD
Magnification: 20X-150X zoom
Resolution: 1920*1080P
Observation angle: 45°
Frame rate: 60 frames per second
Field of view: 18.6*10.4mm~ 2.22*1.06mm
Cross line function: horizontal line, vertical line
Crosshair
Illumination: Four-zone LED ring light source
Image storage method: photo and video, U disk storage
Working distance: 86mm
Operation mode: manual mode
Zoom: 1:8.3
illumination:208 LED Light Lamp

HDMI Digital 3D video microscope:
1.Digital 3D microscope is high quality video microscope with 21MP HDMI camera. It can be connected to a display screen directly.
2.The lens is drived by motor, it can rotate automatically. With the rotation of lens, the stereo image by different view angle will be displayed on the screen.
3.The Image is stereo, user can see more details that normal video microscope can‘t get.
4.With high definition image, it is fit for high precision metal hardware, plastic, electronic products, etc.
