Description

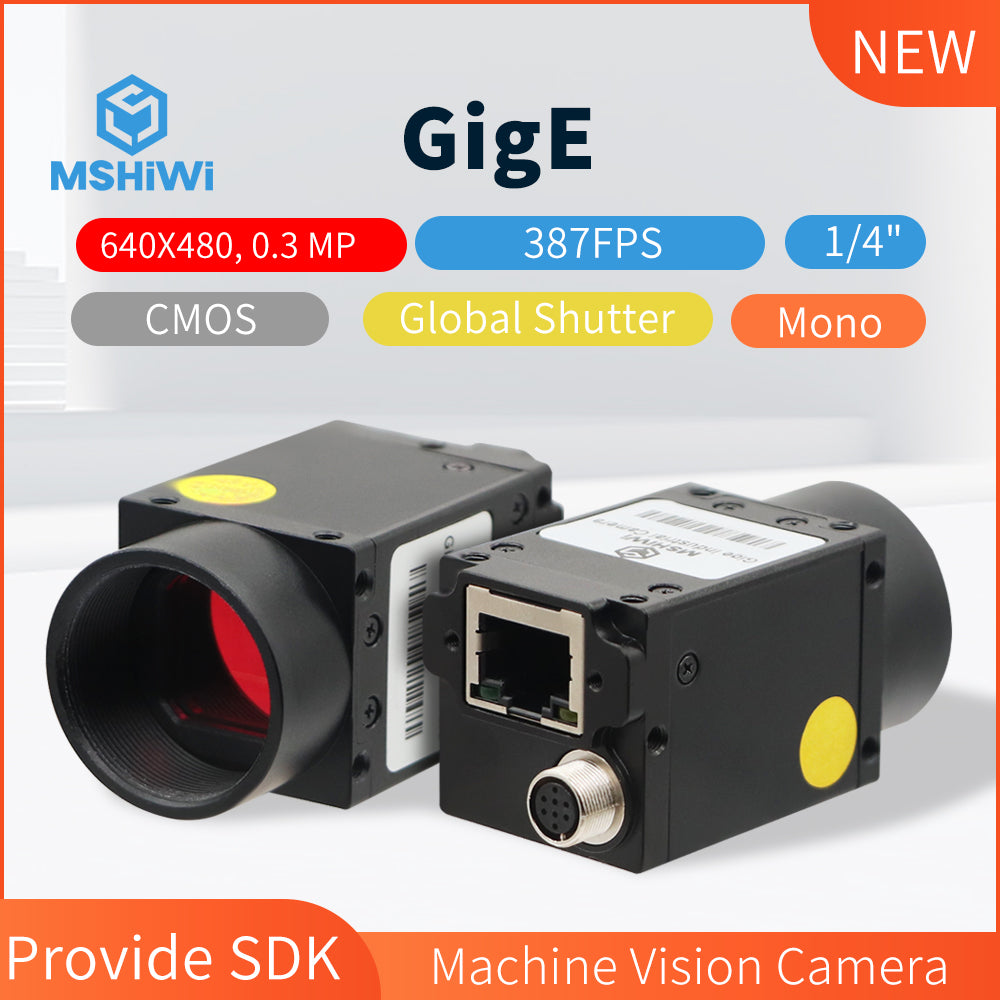

Super-speed GigE Vision Cameras with RJ45 Gigabit Ethernet interface, resolution of 640X480(0.3 Megapixel), 1/4" CMOS, pixel size 4.8μmX4.8μm, max. frame rate 387.0fps, Monochrome, Global Shutter, optional 8/10-bit depth, GigE interface with long transmission distance, SmartVision Controller Vision Solutions for Automated Inspection Measuring, use advanced indsutrial image sensor, superior image quality and high resolution.
GigE Series Features:
1) Support 100 meters transmission or POE (optional).
2) Compatible with gige vision standard.
3) With hardware image processing acceleration.
4) Support multiple cameras to work at the same time.
5) Data packet retransmission technology to ensure reliable data transmission.
6) Provide SDK, easy to use and convenient.
7) Support external trigger and flash.
8) SDK supports Windows and Linux systems.
9) SDK supports VC/C++, VB6, VB.NET, Delphi, C#, JAVA, Python, OpenCV.
Product Feature:
1) Camera parameter archive is saved as a file.
2) Camera name can be modified to easily distinguish multiple cameras.
3) With a maximum of 16K bytes of data storage.
4) Support 8bit, 24bit, 32bit image format output.
5) Ethernet, USB3.0, and USB2.0 camera SDK are the same.
Package Incluede:
1 x Industrial Camera (No Include Lens)
1 x Trigger line
1 x 5 Meters Gigabit Ethernet Cable
1 x 12V Power Supply
Industrial Camera Parameters:
Model: HT-GE34GM-T-CL
Sensor: 1/4" CMOS
Shutter Type: Global Shutter
Camera Type: Monochrome
Pixel Size: 4.8X4.8μm
Effective Pixels: 0.3 MP
Resolution @FPS: 640X480@387FPS
Pixel Bit Depth: 10bit
Sensitivity: 7.3 V/lux-s 540nm
GPIO: 6-pin Hirose Connector
Acquisition: Continuity/Soft Trigger/Hard Trigger
Maximum Gain (multiple): 16.5
Exposure Time (ms): 0.0040~524.3
Filters: NONE
Frame Buffer: 32M Bytes
Custom Data: 2K Bytes
Video Output Format: Bayer8、Bayer12、Mono8、Mono12、Mono16、RGB8、RGB32、RGB48
Visual Standard Protocol: GigE Vision 、GenICam
Lens Interface: C Mouth

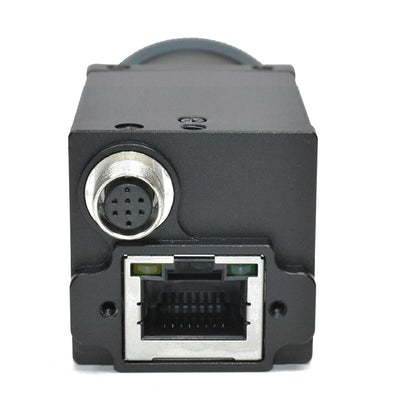

Data Interface: RJ45 Gigabit Ethernet interface
Power Supply: 12V(Optional POE Power Supply)
Power: <2.5W
Dimensions: 29(mm)X29(mm)X40(mm)
Weight: < 75g
Operating Temperature: 0~50 Degrees
Operating System: Support WIN7/8/10 32&64 System; PC Linux System
Driver: Directshow; Halcon; Labview; OCX; TWAIN Component
Programming Ianguage:
C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/OpenCV
Other Functions: Support ROI resolution, contrast and gamma adjustment, saturation adjustment, etc.
Machine Vision Software:
Support Halcon, OpenCV, LabView, Matlab, Python, etc.
Demo Source Code:
Hardware Trigger Line Sequence:
Camera Size:
Product Packing List:
