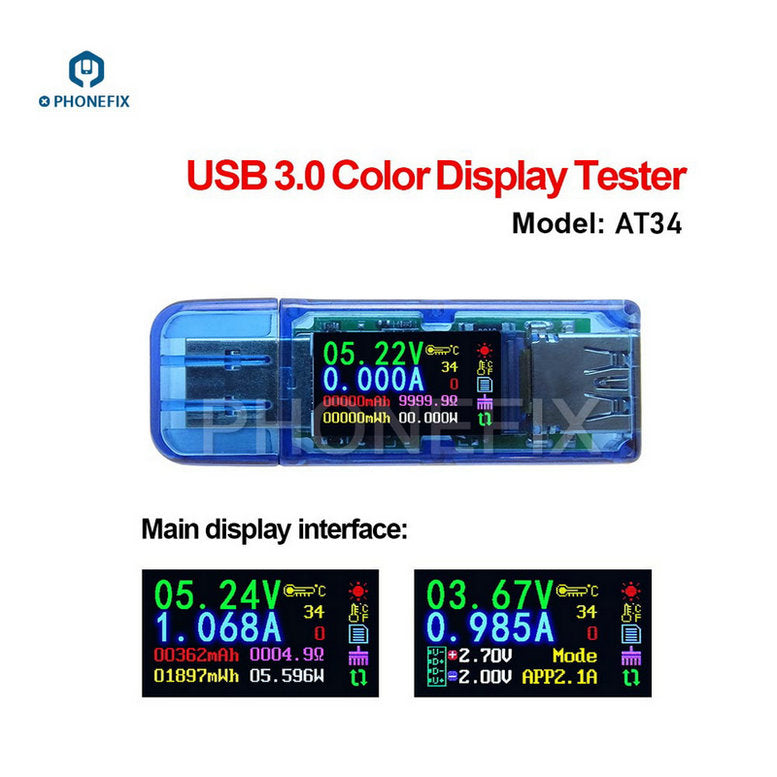

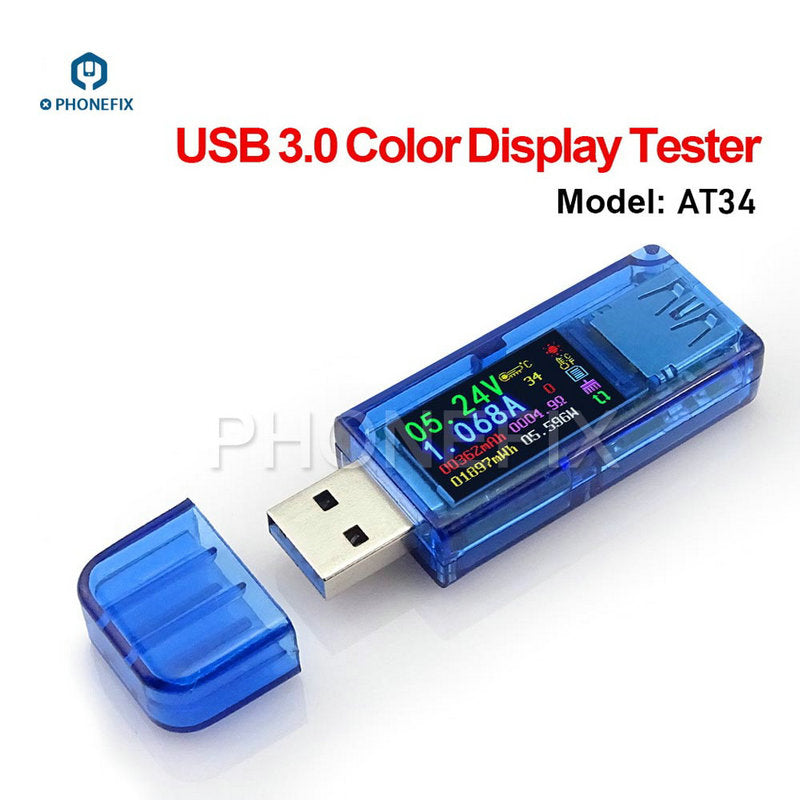

AT34 USB 3.0 Color LCD USB Tester Mini multimeter Phone Repair assistant

Save $3.54
VIPProgrammerSKU: VPAT34

Price:
Login to view price

Shipping calculated at checkout

Stock:
In stock

Description

AT34 Mini multimeter is USB3.0 LCD Display voltage current meter Tester, mobile phone quick charger Battery Power Bank detector repair assistant.

Application :
Testers are widely used in the quality inspection of 3C digital peripheral products, and are the first choice for digital gamer and electronic enthusiasts.
Real-time detection of the state of charge of the appliance, voltage, current, power and other indicators at a glance.

Technical Parameter :
Product Model: AT34
Display screen: 1.44 Inch color LCD display
Voltage measurement range: 3.70-30.00V
Voltage measurement resolution: 0.01V
Current measurement range: 0-4.000A
Current measurement resolution: 0.001A
Capacity accumulation range: 0-99999mAh
Voltage measurement accuracy: ±(0.8%+4digits under 25℃)
Energy accumulation range: 0-99999mWh 999.99W
Current measurement accuracy: ±(1%+4 digits, under 25℃)
Load impedance range: 1Ω-9999.9Ω
Power measurement range: 0-120W
Temperature range: -0℃~80℃/32℉~176℉
Temperature measurement error: ±3℃/±6℉
Working temperature range: 0~45℃
Refresh rate: 2Hz

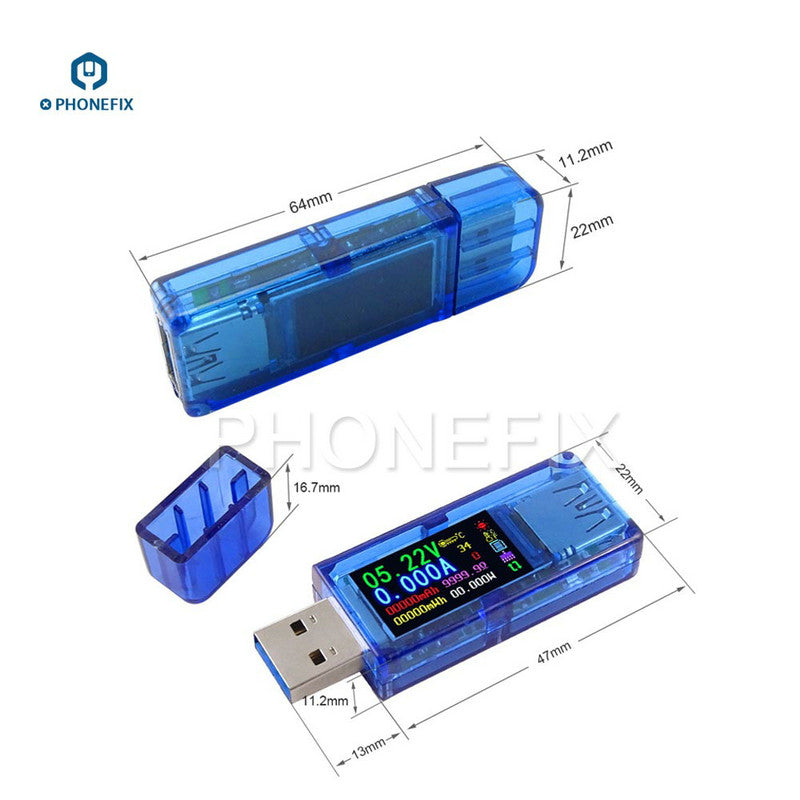

Product size: 64mm x 22mm x 12mm
Product weight: 140g( with packaging 280g)

Quick charge recognition mode : QC2.0, QC3.0, APPLE 2.4A / 2.1A / 1A / 0.5A, Android DCP, Samsung

Note :
User Manual : http://www.mediafire.com/folder/77ueo252py4vc/AT34
Description Video : https://www.youtube.com/watch?v=nkL_pofkd10

Package List :

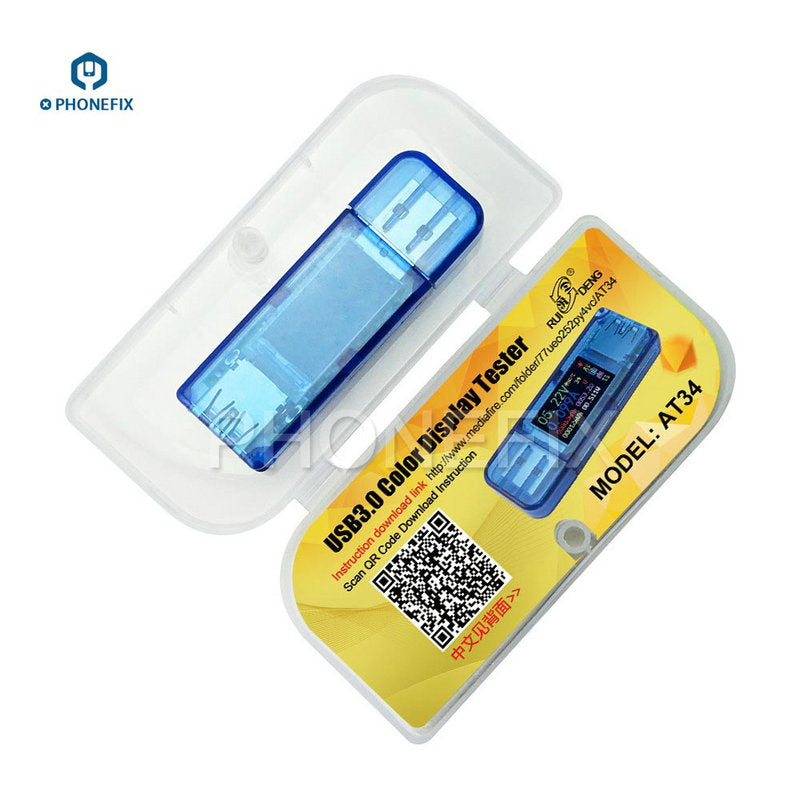

1 x AT34 USB 3.0 Color LCD USB Tester
